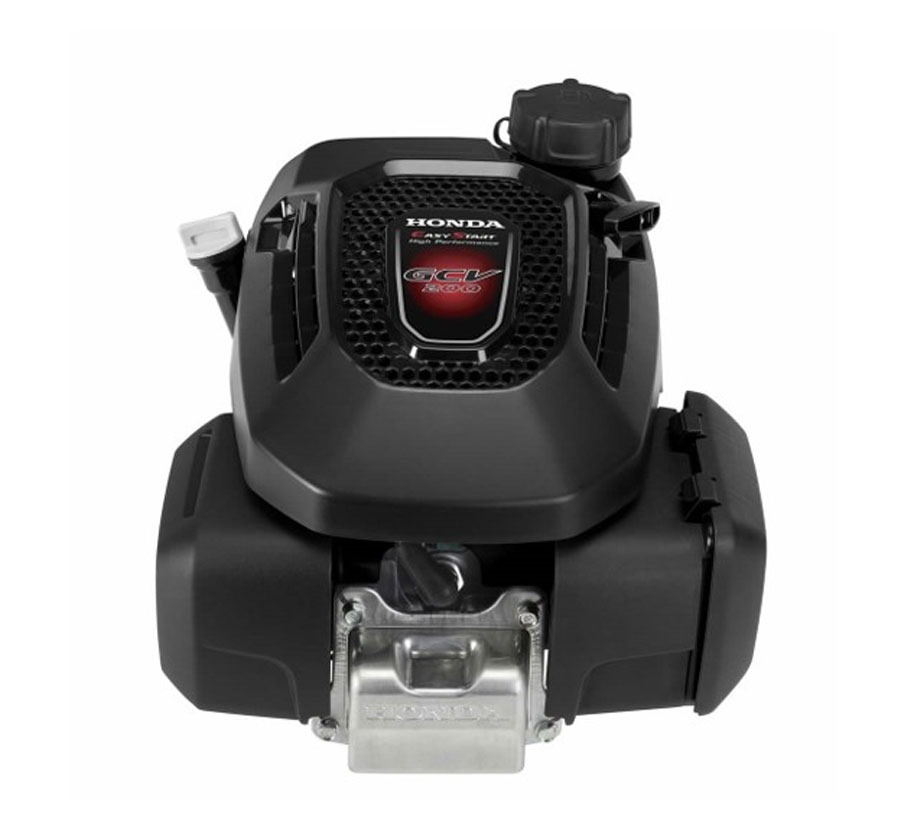

GCV200

GCV200 VERTICAL SHAFT ENGINE
Engine Type: Air-cooled 4-stroke OHV
Bore x Stroke: 2.59″ x 2.32″ (66 mm x 59 mm)
Displacement: 12.3 cu in (201 cm3)
Net Power Output: 5.6 HP (4.2kW) @ 3600 rpm
Net Torque: 9.4 lb-ft (12.7 Nm) @ 2500 rpm
PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
Compression Ratio: 8.0:1
Carburetor: Horizontal type butterfly valve
Ignition System: Transistorized magneto
Starting System: Recoil
Air Cleaner: Dry (paper filter)
Governor System: Centrifugal Mechanical
Fuel Tank Capacity: 0.24 U.S. gal (.99 liter)
Fuel: Unleaded 86 octane or higher
Oil Capacity: 0.42 US qt (0.41l)
Lubrication System: Splash
Dry Weight: 22.3 lbs (10.1 kg)
Length (min): 16.3″ (414mm)
Width (min): 13.0″ (331mm)
Height (min): 13.1″ (333mm)
