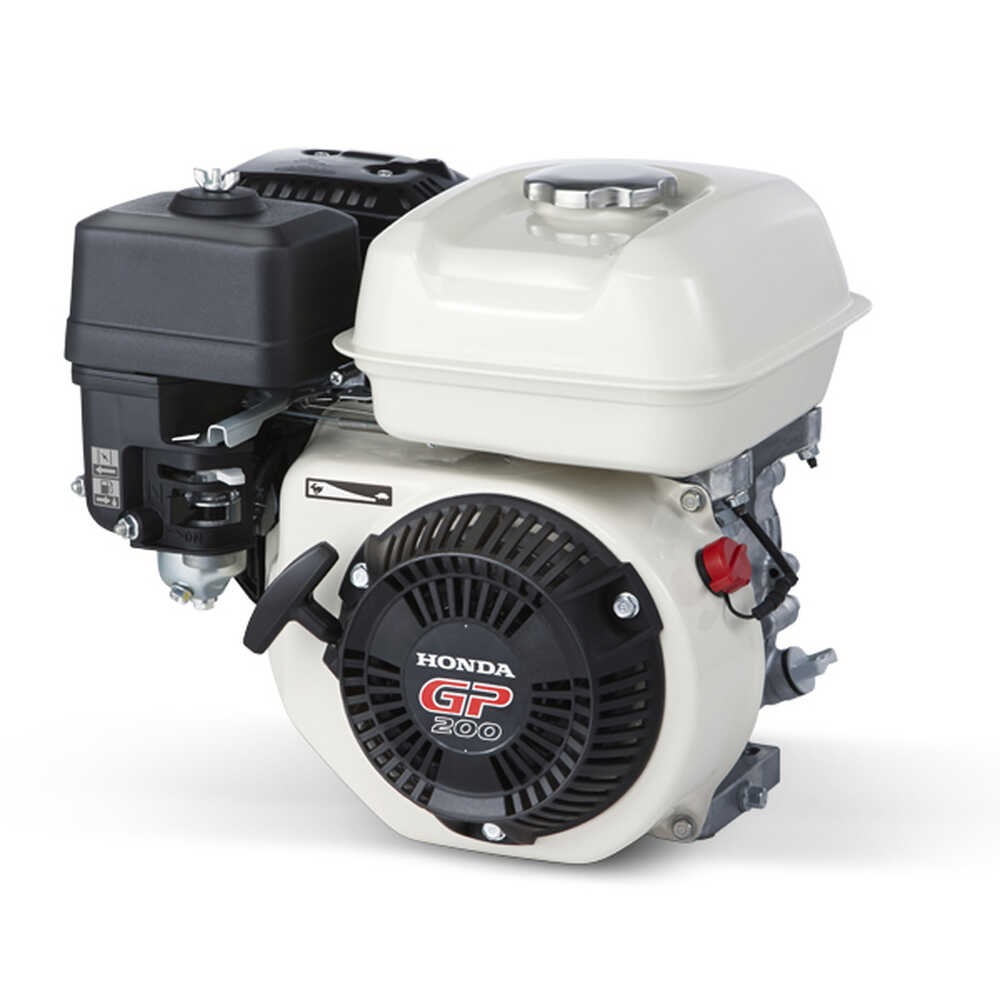

GP200VX

GP200VX Tapered shaft (Generator)
Engine type
4-stroke single cylinder
OHV petrol engine
25° inclined cylinder
horizontal shaft
Cylinder sleeve type
Cast iron sleeve
Bore x Stroke
68 x 54 mm
Displacement
196 cm³
Compression ratio
8.5 : 1
Net power
4.3 kW ( 5.8 HP ) / 3600 rpm
Cont. rated power
3.3 kW ( 4.4 HP ) / 3000 rpm
3.7 kW ( 5.0 HP ) / 3600 rpm
Max. net torque
12.4 Nm ( 1.26 kgfm ) / 2500 rpm
Ignition system
Transistorised
Starter
Recoil
Fuel tank capacity
3.1 Liter
Fuel cons. at cont. rated power
1.7 L/h – 3600 rpm
Engine oil capacity
0.6 Liter
Dimensions (L x W x H)
323 x 378 x 335 mm
Dry weight
16.1 kg
